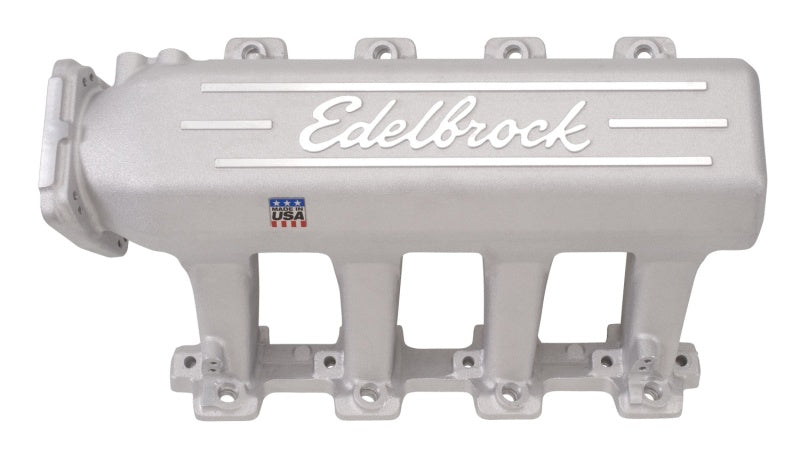

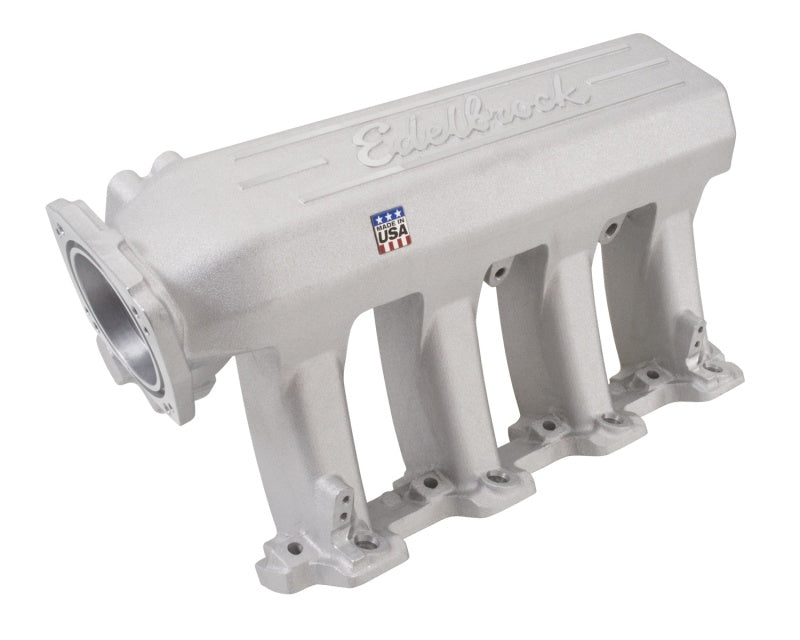

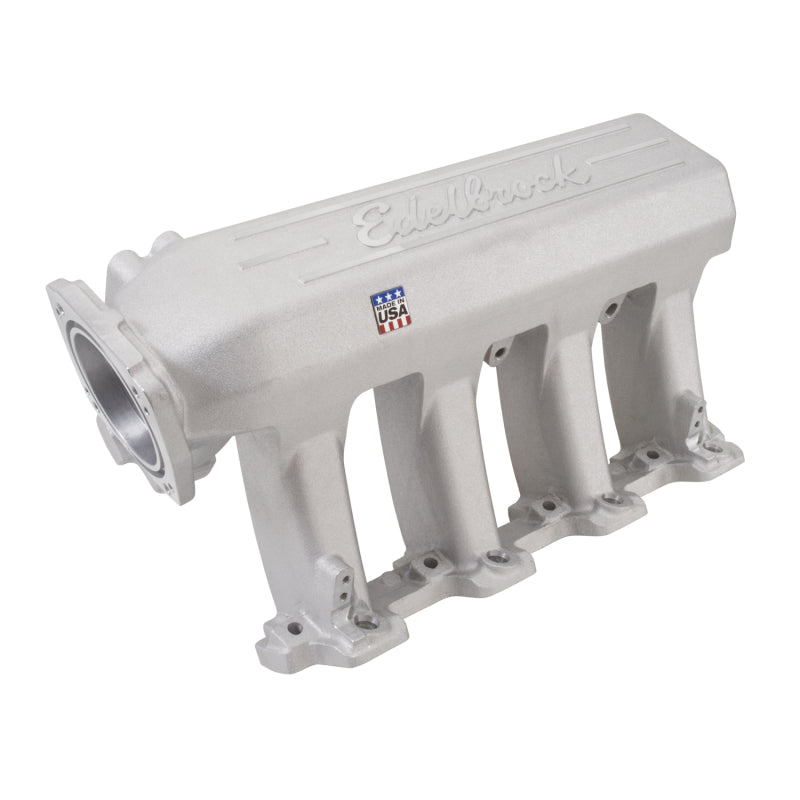

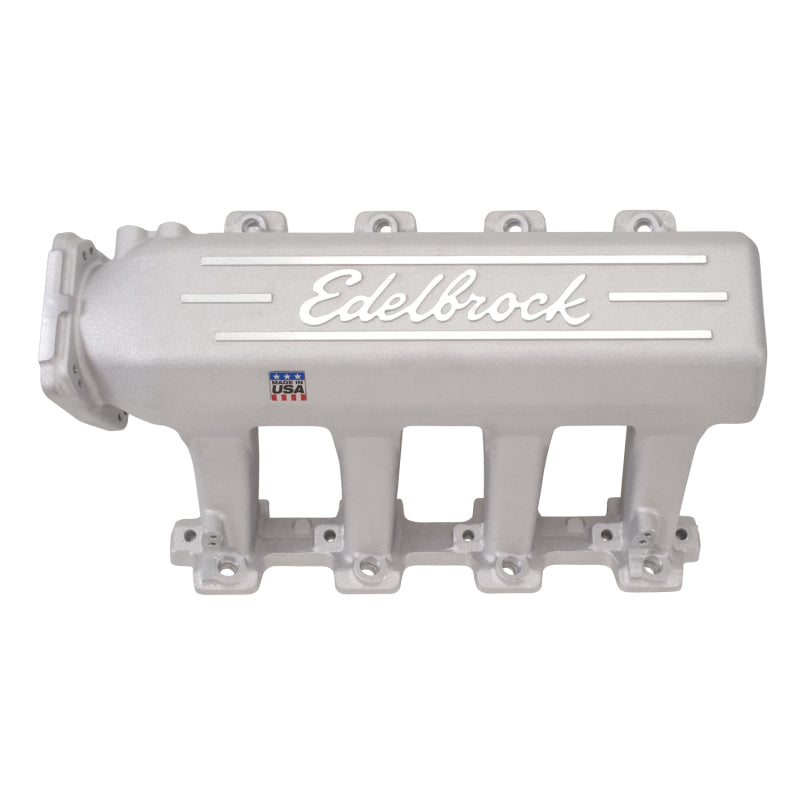

Edelbrock Manifold EFI Pro-Flo XT LS2 As Cast

Edelbrock part #7140 Pro-Flo XT LS2 EFI intake manifold is engineered with a large plenum and tapered runners to deliver maximum horsepower and broad torque band throughout the rpm range (1500-7000 rpm). Features a 90mm throttle bore opening and 2.75" port exit height. This manifold produced 30 more horsepower over a stock LS6 manifold at 6500 rpm. This Pro-Flo XT LS2 intake manifold accepts GM OEM 90mm or Edelbrock #3869 throttle bodies. Compatible with LS1 Fuel Rail Kit #3629 (sold separately), which features -6 AN inlet and outlet.
Installation Instructions


This Part Fits:

Year	Make	Model	Submodel
2006-2007	Cadillac	CTS	V
2005-2007	Chevrolet	Corvette	Base
2005-2006	Chevrolet	SSR	Base
2006-2009	Chevrolet	Trailblazer	SS
2005-2006	Pontiac	GTO	Base
