Edelbrock Supercharger Stage 1 - Street Kit 2009-2010 Chrysler Lx and Lc 5 7L Hemi w/ Tuner

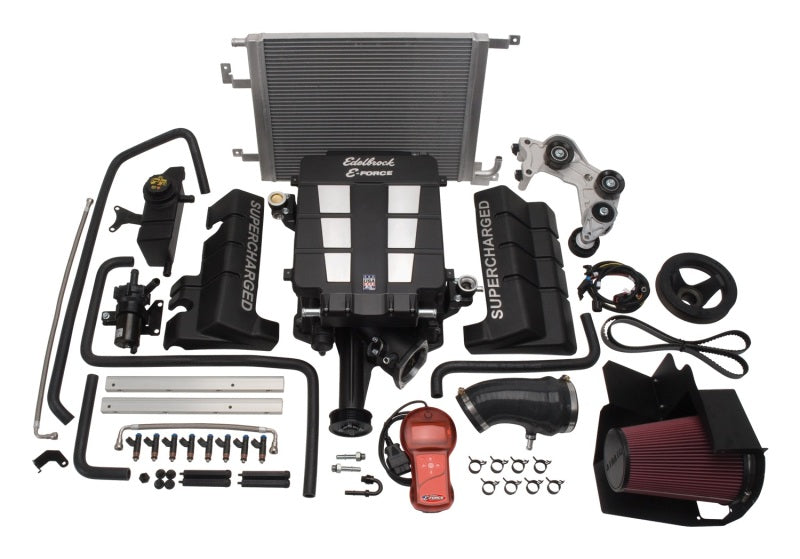

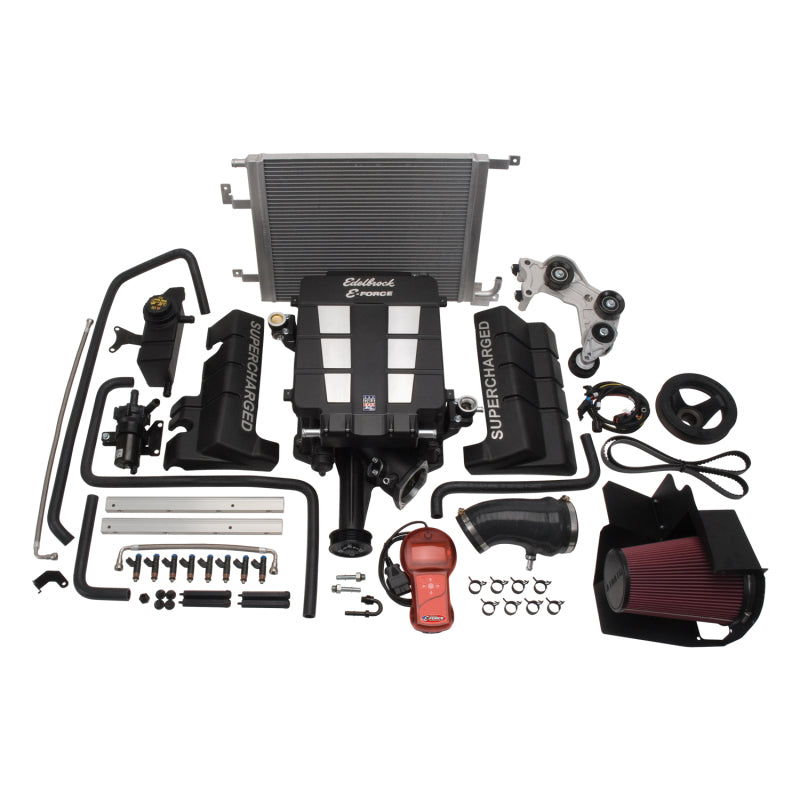

The Edelbrock Supercharger System #1532 is designed for your 2009-10 5.7L HEMI Chrysler 300, Dodge Charger or Challenger and produces 506 horsepower and 501 torque at the flywheel. The core of each system is the Eaton Gen VI 2300 Supercharger rotating assembly with a four-lobe design with 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. We also designed our superchargers with an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger.
Installation Instructions
Material Safety Data Sheet


This Part Fits:

Year	Make	Model	Submodel
2009-2011	Chrysler	300	C
2009-2010	Chrysler	300	C SRT8
2010	Chrysler	300	S
2009-2011	Dodge	Challenger	R/T
2009-2011	Dodge	Challenger	SRT8
2009-2010	Dodge	Charger	Pursuit
2009-2011	Dodge	Charger	R/T
2009-2011	Dodge	Charger	SE
2009-2010	Dodge	Charger	SRT8
